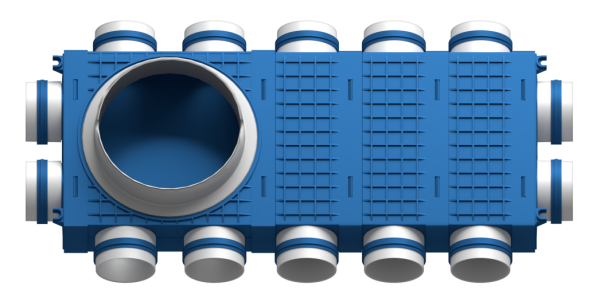

14 Port Modular Ventilation Manifold

The Modular Manifold is used for the distribution of supplied air or collection of used air from rooms connected to the heat recovery system and it is directly connected to the air handling unit.

The Modular Manifolds are made up from a combination of parts which are fitted together in our store or at the jobside. The manifolds are made from modified polypropylene with the Nano-Silver bacteriostatic additive. The use of a bacteriostatic additive made it possible to obtain bacteriostatic activity at a very high level.

The manifolds can be added to or reconfigured which make them a very versatile solution. The 75mm spigots allow for the connections of 75mm Semi-rigid ventilation ducting. The supply pipe spigot allows for 200mm, 160mm, or 125mm pipework depending on the manifold size or configuration.
