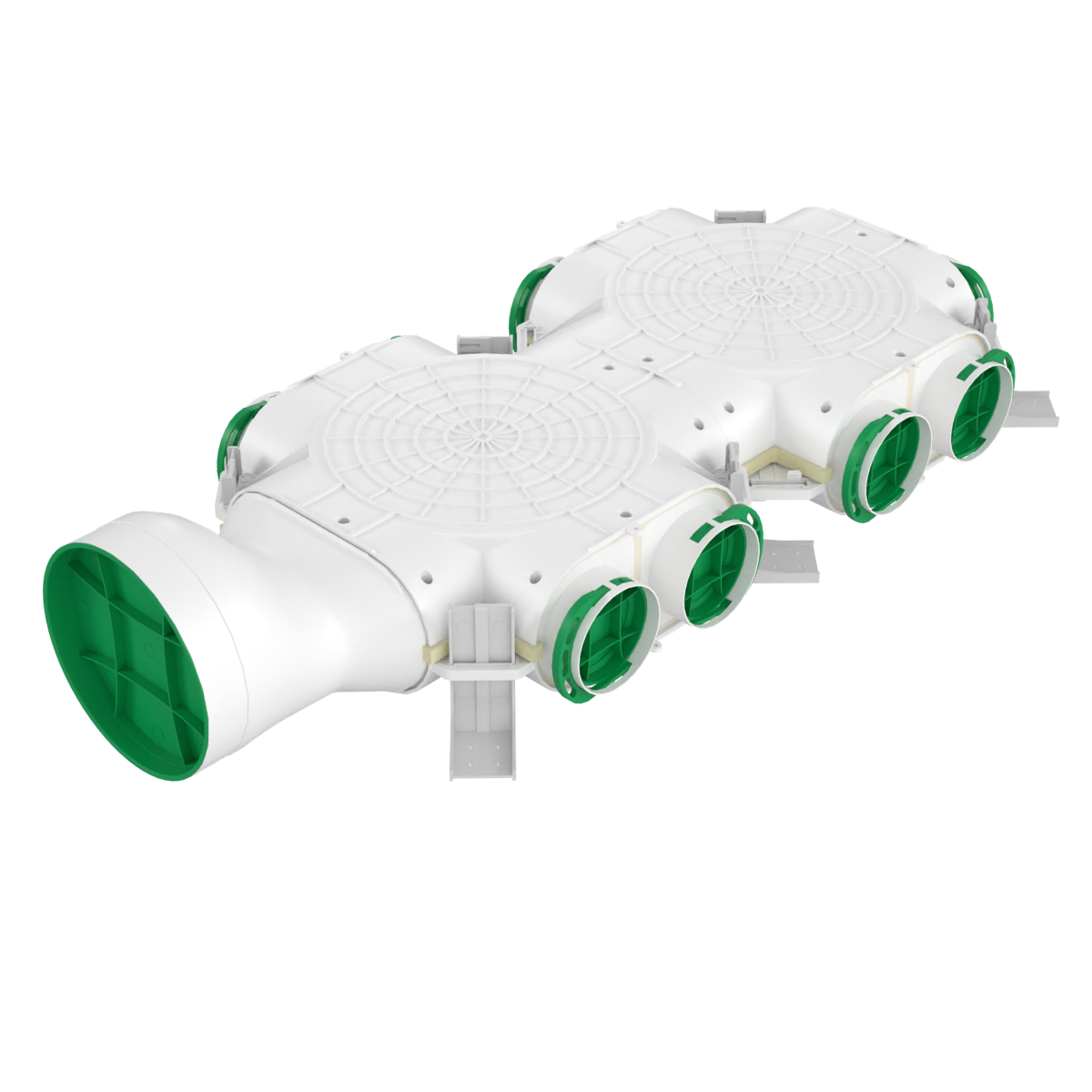

Ventbox Spectrum with side inlet 160-10x75

The VentBox Spectrum VBS160-10 distribution box allows the connection of up to 10 Ø75 ventilation ducts.

As with the other distribution boxes in the VBS series, unused spigots can be covered with plugs with gaskets included with the product.
The box is characterised by a side connection with a diameter of Ø160 mm.

Distribution boxes with side connections are ideal for installation above suspended ceilings and wherever installation height is limited.

The suitably profiled shape of the VentBox Spectrum allows for a quiet air flow, while ensuring low pressure loss.

The range of distribution boxes available has been carefully planned to allow their use in most typical mechanical ventilation systems.
