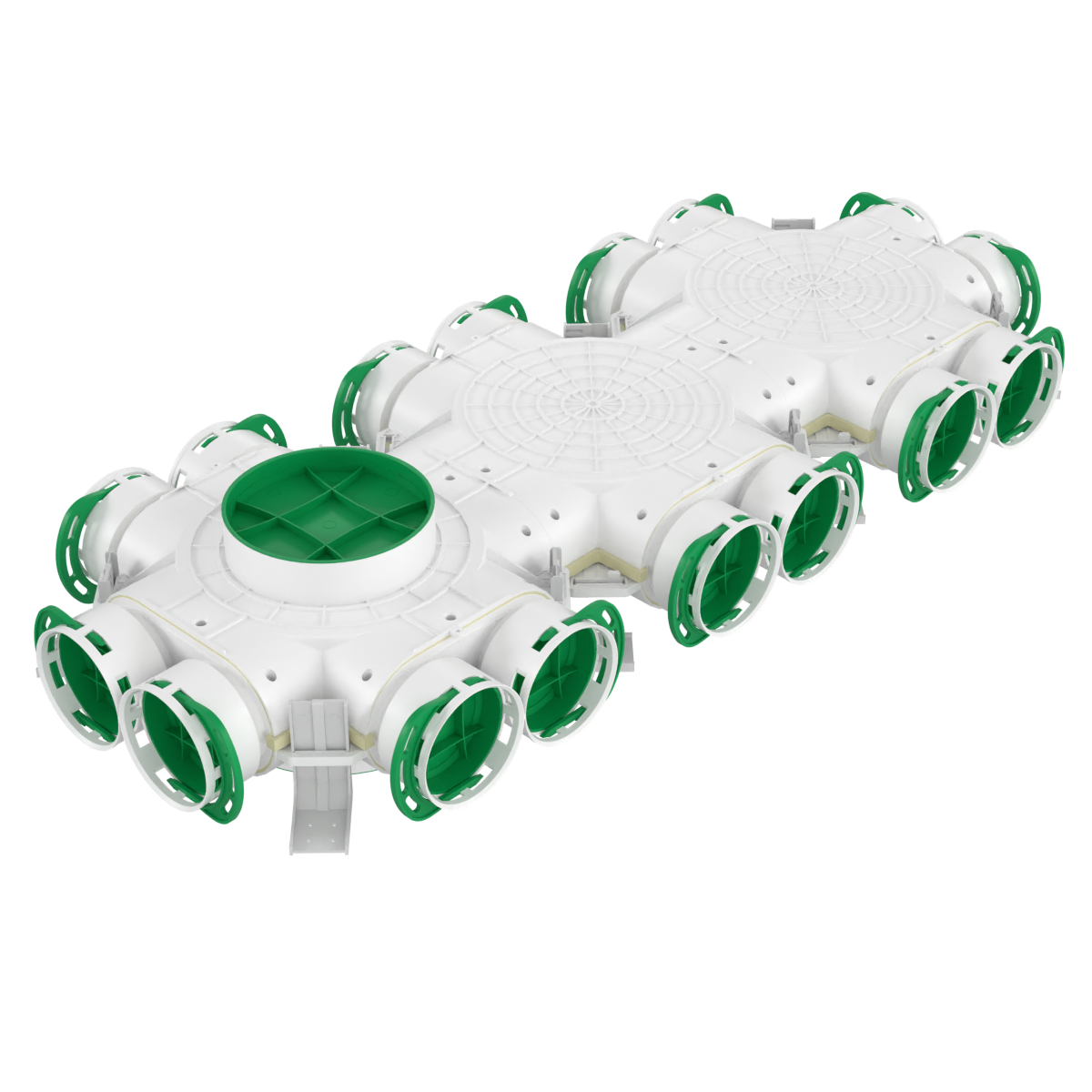

Ventbox Spectrum straight thru 200-16x75
Manifold with 200mm inlet and outlet at the bottom, Also 16x75mm outlets
VentBox Spectrum straight thru distribution box is designed to distribute the air stream between two floors. Straight-through ducts, Ø160 or Ø200 mm, are used for air flow to the next floor of the building, while Ø75 mm ducts enable connection of up to 12 ducts for ventilation of rooms on the lower floor. The air flow between floors is adjusted by means of air valves.
In addition, the user can install a damper upstream of the inlet to the distribution box on the upper floor. Ducts not in use can be closed with the supplied end caps with gaskets.
VentBox Spectrum distribution boxes are equipped with a patented fixing system that enables precise adjustment of the distance between the box and the mounting planes and makes it easy to remove the box if necessary. Independently adjustable brackets allow the horizontal installation of the unit, enabling
it to be tilted as well.
VBS series boxes are designed for installation in a heated area of the building; otherwise, they must be insulated with a layer of mineral wool (min. 15 cm). It can be permanently embedded into the screed or ceiling, or installed under plasterboard.
